ProSim 8
Patient Simulator

Leading Edge Performance in Vital Signs Simulation

Get a quote

Key Features

All-in-one patient simulator

8-hour battery life & onboard memory

Stay-connected ECG posts

OneQA enabled

Optional OneQA automation software

Help ensure patient safety with ProSim 8 Vital Signs Simulator

Get the all-in-one multifunction vital signs simulator to ensure your devices provide the ultimate in-patient safety. Designed to make comprehensive patient monitor testing fast and easy, ProSim 8 vital signs simulator offers total patient monitor quality and safety testing. This includes non-invasive blood pressure (NIBP) static pressure linearity and dynamic pressure repeatability tests, EC13 and ACLS ECG waveforms, to complete Nellcor and Nonin SpO2 low perfusion and Masimo Rainbow SET.

ProSim 8: The preferred simulator for HTM professionals

Featuring specialized stay-connected ECG posts to ensure secure lead connections, ProSim 8 is the preferred tester for patient monitor quality assurance professionals. The ProSim 8 simulates ECG (including fetal ECG/IUP and arrhythmias), respiration, temperature, IBP/cardiac catheterization, cardiac output, NIBP, and SpO2 (including Masimo multi-wavelength Rainbow SET) in a single 5-minute PM testing tool. Customized presets, auto-sequences, barcode scanning, onboard memory, direct data capture, and printing functions maximize testing productivity.

Compatibility and user-friendly interface of ProSim 8

A customized carry case for ProSim 8 doubles as a mobile workstation, making it a practical choice for professionals. The Fluke Biomedical ProSim line of patient monitor testers are compatible with patient monitors by original equipment manufacturers such as GE Healthcare, Philips Healthcare, Spacelabs Healthcare, Nihon Kohden, Welch Allyn, and Draeger (Dräger). It's important to note that brand and trade names remain the property of their respective owners and usage does not imply an endorsement. The ProSim 8 offers a multi-language user interface available in English, Spanish, German, French, Japanese, Italian, and Chinese..

Meet the ProSim 8 Patient Simulator

OneQA Workflow Automation Software

When connected to a PC, running tests is fast and easy with OneQA software. Testing and documenting results is fully automated, saving you valuable time while enhancing accuracy.

Learn more about OneQA

Documentation

Manuals

ProSim 8 Datasheet

ProSim 8 Getting Started

Available in English, Chinese, French, German, Italian, Japanese, Portuguese, Spanish

ProSim 8 User Manual

Prosim Family Brochure

Masimo Rainbow SPO2 Technology and Testing

ProSim 8 Users Manual Supplement

Datasheet

ProSim 8 Datasheet

Prosim Family Brochure

Masimo Rainbow SPO2 Technology and Testing

White Papers and Application Notes

Prosim Family Comparison Chart

ProSim Vital Signs Simulators Brochure

Prosim White Paper: Evolution of the Prosim Simulators

Software
Ansur 3.1.4 Executive Software
Application
Requirements

.NET Framework 3.5 Prerequisite

In order to run Ansur software and its plug-ins for compatibility up to Windows® 10, .NET Framework version 3.5 SP1 must be installed on the PC.

Download .NET Framework 3.5 SP1 installer from Microsoft

Models

What comes in the box:

  • ProSim 8 Getting Started Manual (3980667)
  • ProSim 8 User's Manual (3980671)
  • ProSim 8 Battery Pack (4021085)
  • USB Cable (4034393)
  • IBP Cable, unterminated (2392173)
  • ProSim 8 Carrying Case (4034597)
  • ProSim NIBP MANDREL SET (4308086)
  • AC/DC Power Supply
  • AC Power cord

Optional Accessory:

  • ProSim SpO2 Test Module
View all models

Accessories

Adapters

190060 Adapter module
Part number: 190060
Adapter module (required to interface to Model 190F) (part# 190060)

Miscellaneous Accessories

ProSim SpO2 Test Module
Part number: 3985658
An essential accessory to the ProSim8 Patient Simulator, SPOT SpO2 Test Module allows for highly accurate SpO2 testing, including Rainbow multi-wavelength waveforms.
Ansur PROSIM 6/8 Plug-In license
Part number: 2794069
CI-3 Cardiac output test module
Model name: 3010-0289FGPart number: 2392199
CI-3 Cardiac output test module
Buy Now
ProSim NIBP Mandrel Set
Part number: 4308086
MANDREL-5001 ProSim NIBP Mandrel Set (part# 4308086)
ProSim NIBP Test Chamber
Part number: 4034611
NIBP Test 500ML Rigid Chamber (part# 4034611)

Cables

3010-0104 EM-1 BP cable (6F)
Part number: 2198893
3010-0104 EM-1 BP cable (6ft) (6-pin) (part# 2198893)
COA-1 Cardiac output adapter (Hewlett Packard)
Part number: 2199240
3010-0284 COA-1 Cardiac output adapter (part# 2199240)
Datascope DS-1 BP cable (6F)
Part number: 2198887
3010-0103 Datascope DS-1 BP cable (part# 2198887)
Drager Infinity Cable Set for ProSim 8
Part number: 3984993
Drager Infinity Cable Set (part# 3984993) for ProSim 8 includes: SM-1 BP Cable (part# 2198925, two) YSI 400 Series Compatible 2 conductor (part# 2523334)
GE Marquette Eagle/Dash/Solar Cable Set for ProSim 8
Part number: 3984968
GE Marquette Eagle/Dash/Solar Cable Set (part# 3984968) for ProSim 8 includes: MQ-3 BP Cable (part# 2199627, two) UT-4,Low profile 1/4 inch phone plug YSI 400 Series Compatible 2 conductor (part# 2523334) UT-2 Tamp Cable 700 Series YSI (part# 2199019) PROSIM8-4402GECO Din cardiac Output Marq Eagle (part# 4022300)
GE Marquette Medical MQ-3 BP cable (11M)
Part number: 2199627
GE Marquette Medical MQ-3 BP cable (rectangular -11 M) (part# 2199627)
HP-3 BP cable (12M 5µV)
Part number: 2198902
HP-3 BP cable (12M 5\u00b5V) 120 in, Mini-DIN to 12 pin HP/PH (part# 2198902) This is compatible with Mindray products.
HP-4 BP cable (12M 40µV)
Part number: 2198916
3010-0111 HP-4 BP cable (12M 40\u00b5V) (part# 2198916)
HP/Philips Intellivue Cable Set for ProSim 8
Part number: 3984922
HP/Philips Intellivue Cable Set (part# 3984922) for ProSim 8 includes:HP-3 BP Cable (part# 2198902, two)HPT-2 Tamp/C.O. Injct Cable Assembly (part# 2199257)COA-1 Cable Assembly (part# 2199240)UT-4,Low profile 1/4 inch phone plugYSI 400 Series Compatible 2 conductor (part# 2523334)This Cable Set is compatible with Mindray products.
HPT-2 Temperature Cable Adapter
Part number: 2199257
(part# 2199257) Model #3010-0285 HPT-2 Temperature Cable Adapter, Hewlett Packard, 2 pin (YSI 400 series)
Masimo Rainbow Set Test Cable
Part number: 4034609
4034609
MQ-2 BP cable (8M) (7-pin)
Part number: 2198978
3010-0122 GE Marquette Medical MQ-2 (8M round) (7-pin) (part# 2198978)
Nihon Kohden Cable Set for ProSim 8
Part number: 3985009
Nihon Kohden Cable Set (part# 3985009) for ProSim 8 includes: Nihon Kohden-NK-1, BP Cable (5M) (part# 2462263, two) DIN to minDin adapter (part# 3408564) UT-4, Low profile 1/4 inch phone plug YSI 400 Series Compatible 2 conductor (part# 2523334)
Nihon Kohden Mini DIN to DIN IBP Adapter
Part number: 3408564
Nihon Kohden Mini DIN to DIN IBP Adapter (part# 3408564)
PC-1 BP cable (6M) (6-pin)
Part number: 2198940
3010-0116 PC-1 BP cable (6M) (6-pin) (part# 2198940)
ProSim 8 Accessory Kit
Part number: 3984910
ProSim8-4402GECO Marquette Eagle DIN cardiac output switch
Part number: 4022300
ProSim8-4402GECO Cardiac Output Switch (part# 4022300)
PS8IUP-8001, Corometrics IUP Simulation Cable
PS8IUP-8001, Corometrics IUP Simulation Cable Part# 5226108
Puritan Bennett/Datex DX-1 BP cable (10F)
Part number: 2200955
3010-0584 DX-1 BP cable (10F) (10-pin) (part# 2200955)
SM-1 BP cable (10M) (10-pin)
Part number: 2198925
Siemens-SM-1, BP cable
SM-1 BP cable (6M)
Part number: 2198925
QM-1 (6M) Blood pressure cable (10-pin orange) (part# 2198925)
SpaceLabs Ultraview Cable Set for ProSim 8
Part number: 3984946
SpaceLabs Ultraview Cable Set (part# 3984946) for ProSim 8 includes: TK-1 BP Cable (part# 2198879, two) UT-4,Low profile 1/4 inch phone plug YSI 400 Series Compatible 2 conductor (part# 2523334) UT-2 Tamp Cable 700 Series YSI (part# 2199019) CI-3 Cable Assembly (part# 2392199)
TK-1 BP cable (6M)
Part number: 2198879
3010-0076 TK-1 (6M) BP Cable (part# 2198879)
UT-4 Low profile, ¼ in phone plug
Part number: 2523334
UT-4 Low profile, ¼ in phone plug, YSI 400 series compatible, two conductor (part# 2523334)
Welch Allyn/Propaq Cable Set for ProSim 8
Part number: 3984979
Welch Allyn/Propaq Cable Set (part# 3984979) for ProSim 8 includes: TK-1 BP Cable (part# 2198879, two) UT-4, Low profile 1/4 inch phone plug YSI 400 Series Compatible 2 conductor (part# 2523334) UT-2 Tamp Cable 700 Series YSI (part# 2199019)

Batteries, Chargers, Power Supplies

ProSim 8 Battery Pack
BPPS68 Battery Pack
Part number: 4021085
ProSim 8 Battery Pack PN:4021085
Universal AC/DC Power Supply
Part number: 4766550
Universal AC/DC Power Supply for Impulse 6000/7000, SigmaPace 1000, ProSim 8

Carrying Cases

ProSim 8 Carrying Case
Part number: 4034597
ProSim 8 Carrying Case
Related Videos

Webinar

All about SpO2

Webinar

Fundamentals of Pulse Oximetry

Webinar

Pulse Oximetry Myths

Video

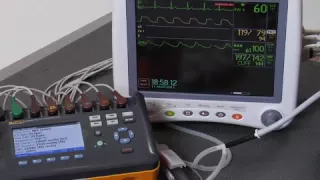

ProSim 8 Patient Monitor Simulator Overview

Video

Evaluación del monitor del paciente con ProSim 8

Video

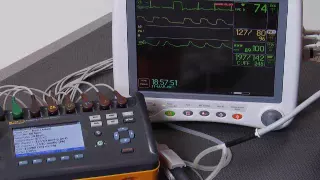

ProSim 8 Vital Signs Patient Simulator

Video

Watch the 5-Min patient monitor PM

Webinar

NIBP Monitoring and Testing Best Practices Webinar

Frequently asked questions

Yes, you can edit factory autosequence. Open the factory autosequence, change the test elements, modify the custom settings and click save as button to save it as custom autosequence under different name. However, you cannot overwrite the factory autosequences present in the Ansur Test Library and in the main unit.
