Impulse 7000DP Defibrillator Analyzer and Pacemaker Tester

Impulse 7000DP Defibrillator/Transcutaneous Pacemaker Analyzer

Specifications

Demo Video

Impulse 6000D/7000DP User's Manual

Vertical Tabs

Overview

Key Features

Impulse 7010 Defibrillator Selectable Load Accessory provides multiple loads of 25 Ω, 50 Ω, 75 Ω,100 Ω, 125 Ω, 150 Ω, 175 Ω, and 200 Ω to comply with IEC 60601-2-4 standard (optional)

Lown, Edmark, trapezoidal, biphasic and pulsed-biphasic defibrillation technology compatibility

AED technology compatibility

First-class measurement accuracy ± 1 % of reading + 0.1 J

Intuitive user interface and backlight, easy-to-read display

Portable, rugged, easy to carry

Long-lasting, rechargeable battery

Pacer input protected against defibrillator output (7000DP only)

10 independent ECG outputs that provide 12 lead combinations for standardized clinical signals

Flexible heart-rate settings (1 BPM step) facilitate rate meter accuracy and alarm testing

DSP-based measurements enable future firmware and waveforms upgrade

Unique integrated posts for secure connections

Two-year extended warranty (no-cost extended warranty available after first-year calibration at any Fluke Biomedical authorized service center)

Optional Ansur test automation software to standardize testing procedures, capture waveforms and test results, and print and document test results

Designed, tested, and built to incomparable Fluke quality standards

Ordering Information

Models:

Impulse 7000DP

Model Number

2811919

Part Number

2811919

Impulse 7000DP Defibrillator/Transcutaneous Pacemaker Analyzer 120 V - US All models include: USB Computer Communication Cable (Cable assembly) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft case)

Impulse 7000DP-01

Model Number

3077005

Part Number

3077005

Impulse 7000DP Schuko

Impulse 7000DP-02

Model Number

3077010

Part Number

3077010

Impulse 7000DP UK

Impulse 7000DP-03

Model Number

3077022

Part Number

3077022

Impulse 7000DP Japan

Impulse 7000DP-04

Model Number

3085296

Part Number

3085296

Impulse 7000DP Australia

Impulse 7000DP-05

Model Number

3085308

Part Number

3085308

Impulse 7000DP India

IMPULSE 7000DP-06

Model Number

3938228

Part Number

3938228

Impulse 7000DP Brazil

TA-IMP7KDP

Model Number

3326874

Part Number

3326874

Impulse 7000DP with test automation 120 V US All models include: USB Computer Communication Cable (Cable assembly) User Manual CD (CD-ROM) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft case)

TA-IMP7KDP-01

Model Number

3326888

Part Number

3326888

Impulse 7000DP with test automation Shuko

TA-IMP7KDP-02

Model Number

3326895

Part Number

3326895

Impulse 7000DP with test automation United Kingdom

TA-IMP7KDP-03

Model Number

3326901

Part Number

3326901

Impulse 7000DP with test automation Japan

TA-IMP7KDP-04

Model Number

3326912

Part Number

3326912

Impulse 7000DP with test automation Australia

TA-IMP7KDP-05

Model Number

3326920

Part Number

3326920

Impulse 7000DP with test automation India

TA-IMP7KDP-06

Model Number

3938237

Part Number

3938237

Impulse 7000DP with test automation Brazil

TA-IMP7K/7010 US

Model Number

3481039

Part Number

3481039

Impulse 7000DP US 120 V with Impulse 7010 and test automation United States All models include USB Computer Communication Cable (CABLE ASSEMBLY) User Manual CD (CD-ROM) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft Case) Ansur Test-Automation Software (ANSUR IMPULSE 7000)

TA-IMP7K/7010 SHK

Model Number

3481042

Part Number

3481042

Impulse 7000DP with Impulse 7010 and test automation Shuko

TA-IMP7K/7010 UK

Model Number

3481056

Part Number

3481056

Impulse 7000DP with Impulse 7010 and test automation United Kingdom

TA-IMP7K/7010 JPN

Model Number

3481074

Part Number

3481074

Impulse 7000DP with Impulse 7010 and test automation Japan

TA-IMP7K/7010 AUS

Model Number

3481088

Part Number

3481088

Impulse 7000DP with Impulse 7010 and test automation Australia

TA-IMP7K/7010 BRAZ

Model Number

3938243

Part Number

3938243

Impulse 7000DP with Impulse 7010 and test automation Brazil

Precision. Performance. Peace of Mind with our NEW Protect+ program

Discover the Protect+ program. Protect+ is designed for one purpose: Giving you peace of mind. The Protect+ program takes the guesswork out of total cost of ownership, eliminating unexpected repair costs so you can focus on keeping patient care on-track and on-budget.

Click here to learn more about Protect+

Impulse 7000DP Defibrillator Analyzer and Pacemaker Tester

Efficient, accurate, versatile, trustworthy

The Impulse 7000DP Defibrillator/Transcutaneous Pacemaker Analyzer ensures proper operation and ultimate performance of critical life-support cardiac-resuscitation equipment. The Impulse 7000DP is superior in compliance, technology, efficiency and ease of use. A sleek and rugged exterior is paired with first-class technology, putting this defib tester in a league of its own. Standardize test procedures, capture, and print results with Ansur test-automation software, or use the Impulse 7010 Defibrillator Selectable Load Accessory to ensure IEC 60601-2-4 and AAMI DF80 compliance.

Request a quote or demo

First Name *

Last Name *

Email address *

Company *

Business Phone *

Country *

Zip or Postal Code *

Postal Code

List all products of interest *

Protect+

Get details on a Protect+ plan

I would like to *

Get pricing

Get a demo

Talk with an expert

We regret that the current U.S. Export Regulations prohibit the sale of our products to U.S. embargoed countries. We must, therefore, decline any request for our products.

After submitting this form you will receive an email to confirm your email subscription.

Leave this field blank

Product Details

Impulse 7000DP

Overview

Key Features

Impulse 7010 Defibrillator Selectable Load Accessory provides multiple loads of 25 Ω, 50 Ω, 75 Ω, 100 Ω, 125 Ω, 150 Ω, 175 Ω, and 200 Ω to comply with IEC 60601-2-4 standard (optional)
Lown, Edmark, trapezoidal, biphasic and pulsed-biphasic defibrillation technology compatibility
AED compatibility
12-lead ECG simulation
Ability to test external transcutaneous pacemakers (Impulse 7000 DP only)
Internal pacer brand selections
Flexible heart-rate settings (1BPM step)
DSP-based measurements for firmware and waveform upgrade
Waveform capture, store and replay
First-in-class accuracy ± 1% of reading + 0.1J
Long lasting, rechargeable battery

Testing cardio resuscitation equipment with Impulse 7000DP defibrillator analyzer

The Impulse 7000DP model is a combination Defibrillator/Transcutaneous Pacemaker Analyzer

The Impulse 7000DP defibrillator analyzer ensures proper operation and ultimate performance of critical life-support cardiac-resuscitation equipment, including mono- and bi-phasic defibrillators and AEDs. This best-in-class defibrillator analyzer offers test capabilities that encompass a global spectrum of established pulse shapes, feature breakthrough AED technology compatibility, and deliver superior performance with accuracy readings ± 1% of reading +0.1J. The Impulse 7000DP model is a combination Defibrillator Analyzer and Pacemaker Tester with an intuitive user interface, backlight, and easy-to-read display. This portable, rugged, easy-to-carry device features functionality that includes energy output measurement, ECG waves, and an extensive range of test loads and measurement algorithms needed to test external transcutaneous pacemakers. The Impulse 7000DP coupled with the Impulse 7010 Defibrillator Selectable Load Accessory enables end-users to select from multiple loads (25Ω - 200Ω) ensuring IEC 60601-2-4 compliance. The Impulse 7000DP features 10 independent ECG outputs that provide 12 lead combinations for standardized clinical signals. Ansur test automation may be purchased in order to standardize test procedures, capture waveforms and test results, and evolve with increasing requirements for electronic data storage.

Models

Model Name	Part Number	Description
Impulse 7000DP	2811919	Impulse 7000DP Defibrillator/Transcutaneous Pacemaker Analyzer 120 V - US All models include: USB Computer Communication Cable (Cable assembly) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft case)
Impulse 7000DP-01	3077005	Impulse 7000DP Schuko
Impulse 7000DP-02	3077010	Impulse 7000DP UK
Impulse 7000DP-03	3077022	Impulse 7000DP Japan
Impulse 7000DP-04	3085296	Impulse 7000DP Australia
Impulse 7000DP-05	3085308	Impulse 7000DP India
TA-IMP7KDP	3326874	Impulse 7000DP with test automation 120 V US All models include: USB Computer Communication Cable (Cable assembly) User Manual CD (CD-ROM) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft case)
TA-IMP7KDP-01	3326888	Impulse 7000DP with test automation Shuko
TA-IMP7KDP-02	3326895	Impulse 7000DP with test automation United Kingdom
TA-IMP7KDP-03	3326901	Impulse 7000DP with test automation Japan
TA-IMP7KDP-04	3326912	Impulse 7000DP with test automation Australia
TA-IMP7KDP-05	3326920	Impulse 7000DP with test automation India
TA-IMP7K/7010 US	3481039	Impulse 7000DP US 120 V with Impulse 7010 and test automation United States All models include USB Computer Communication Cable (CABLE ASSEMBLY) User Manual CD (CD-ROM) Getting Started Guide (Manual) Battery Eliminator (country specific) Defib Paddle Contact Plates (FBC-IMP7000-8010) Carrying Case (Soft Case) Ansur Test-Automation Software (ANSUR IMPULSE 7000)
TA-IMP7K/7010 SHK	3481042	Impulse 7000DP with Impulse 7010 and test automation Shuko
TA-IMP7K/7010 UK	3481056	Impulse 7000DP with Impulse 7010 and test automation United Kingdom
TA-IMP7K/7010 JPN	3481074	Impulse 7000DP with Impulse 7010 and test automation Japan
TA-IMP7K/7010 AUS	3481088	Impulse 7000DP with Impulse 7010 and test automation Australia
IMPULSE 7000DP-06	3938228	Impulse 7000DP Brazil
TA-IMP7KDP-06	3938237	Impulse 7000DP with test automation Brazil
TA-IMP7K/7010 BRAZ	3938243	Impulse 7000DP with Impulse 7010 and test automation Brazil

Accessories

Batteries, Chargers, Power Supplies

AC Power Cord (USA)

AC Power Cord (USA)10A, 125V, NEMA5-15 TO C13, 3X18AWG, SVT, 6FT, BLACK

Model number: 284174

Universal AC/DC Power Supply

Universal AC/DC Power Supply for Impulse 6000/7000, SigmaPace 1000, ProSim 8

Part number: 4766550

Learn more

Ansur Impulse 6000D/7000DP Plug-In license

Adapters

FBC-IMP7000-8010 defib plate

FBC-IMP7000-8010 defib plate (part# 3156262 and 3065527) *Each unit requires two.

Part number: 3156262
Model number: FBC-IMP7000-8010

Learn more

GE Marquette Defib/Pacer adapter

GE Marquette defib/pacer adapter (part# 3065423)(RESPONDER1500/1700 Series) (set of two) 4mm

Model number: I6/7 D/P ADPT101

Internal defib discharge paddle contacts (set of two)

Internal discharge paddle contacts (2) (4mm) (part# 3065438)

Part number: 3065438
Model number: I6/7 D/P ADPT102

Medtronic ERS/Physio-Control Defib/Pacer adapter

Medtronic ERS/Physio-Control Defib/Pacer adapter (part# 3065461)(QUIK COMBO) 4mm

Part number: 3065461
Model number: I6/7 D/P ADPT104

Medtronic ERS/Physio-Control Pacer adapter

Medtronic ERS/Physio-Control pacer adapter (part# 3065477)(QUIK PACE) (set of two): 4 mm
Part number: 3065477
Model number: I6/7 D/P ADPT105

MedtronicERS/Physio-Control Defib adapter

MedtronicERS/Physio-Control (part# 3065489)(FAST PATCH) (set of two) 4mmfor Impulse 6000D/7000DP
Part number: 3065489
Model number: I6/7 D/P ADPT106

Philips/Agilent HEARTSTART FR2/MRX Defib/Pacer adapter

Philips/Agilent Defib/Pacer adapter (part# 3065509)HEARTSTART FR2/MRX 4mm

Part number: 3065509
Model number: I6/7 D/P ADPT108

Zoll Medical NTP/PD1400 pacer adapter

Zoll Medical NTP/PD1400:4 mm pacer adapters (part# 3065527)

Part number: 3065527
Model number: I6/7 D/P ADPT110

Zoll Medical PD2200 Multi-Function Series electrodes

Zoll Medical PD2200 Multi-Function Series electrodes (part# 3065511)

Part number: 3065511
Model number: I6/7 D/P ADPT109

Learn more

Defibrillator Analyzers

Impulse 7010 Defibrillator Selectable Load Accessory

The Impulse 7010 Selectable Load Box is a unique, robust and easy-to-use tool which provides the capability to test defibrillators under a variety of patient impedance conditions to ensure patient safety and is the perfect companion to the Impulse 7000DP.

Part number: 3158544
Model number: IMPULSE 7010

Learn more

Software

Software Updates

Impulse 7000 Firmware v2.12

Impulse 6000D/7000DP Firmware

Requirements

Ansur Executive 3.1.3 (or later) and Ansur Impulse 7000 Plug-In 1.2.5 (or later) Windows

Download

Software Plugins

Ansur Impulse 6000D/7000DP Plug-In v1.2.5

Requires Ansur Executive 3.1.3 or higher. Allows selection of VFIB2 Coarse and VFIB2 Fine ECG waveforms for Energy measurement, Charge Time, and Arrhythmia Wave tests. Updated VFIB waveforms to VFIB1, but kept backward compatibility for existing Ansur templates and test records. Corrected some formatting issues in test reports. Ansur Plug-In module to control the Impulse 6000D Defibrillator Analyzer and Impulse 7000DP Defibrillator / Pacemaker Analyzer.

Ansur Impulse 6000D/7000DP Plug-In v1.2.5 Release Notes

Download

Resources

6000D/7000DP Manual Supplement

Download

Manual » Getting Started Guide

Impulse 6000D/7000DP Getting Started Guide

Download

ES FR DE IT JA

Impulse 6000D/7000DP Getting Started Supplement

Download

Manual

Imp7000 ESA Certificate of Compliance

Download

Imp7000 IntraTest Results

Download

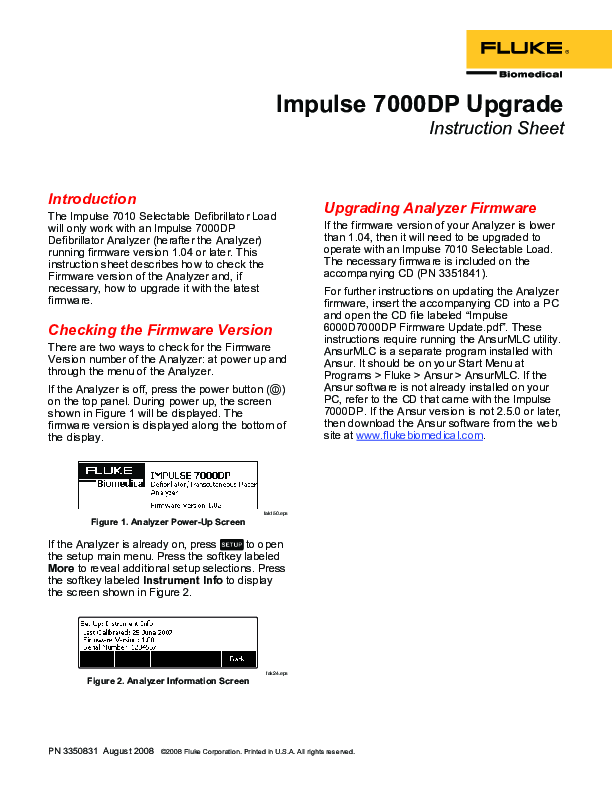

Impulse 7000DP Instruction Sheet

Download

Frequently Asked Questions

Impulse 6000D/7000DP FAQ

Download

Impulse 6000D/7000DP FAQ

Download

Manual » User's Manual

Impulse 6000D/7000DP User's Manual

Download

Application Note

Sending Data to a PC

Download

Impulse 6000D/7000DP ventricular fibrillation amplitudes

Download

Impulse 6000D/7000DP: remote communications interface

Download

Datasheet

Impulse 6000D/7000DP Datasheet

Download

ZH ES FR DE IT JA PT TR

Certification

Impulse 7000DP CE Declaration of Conformity

Download

Impulse 7000DP CSA Certificate of Conformity

Download

Impulse 7000DP EMC Certificate of Conformity

Download

Videos

Webinars

Learn how you can save lives by making sure AEDs work the first time, every time.

AEDs: What You Need to Know - FDA updates, Best Practices, and more

Learn how to perform preventive maintenance on defibrillators and AEDs, along with current global regulatory standards.

Defibrillator and AED Best Practices – Saving lives, one test at a time

Impulse 7000 + SPOT Light Combo Kit Video Demonstration

Measurements and functional testing of Defibrillator parameters and cardiac-related patient simulation.

The Total Defib/Pacer Test Solution

Ensures proper operation and ultimate performance of critical life-support cardiac-resuscitation equipment

Impulse 7000DP defibrillator analyzer

FAQs

Frequently Asked Questions

After charging my unit completely (until the Charge Status LED turns green), the battery charge level still indicates less than 100 %. What's wrong? How do I get the charge level to read 100 %?

The answer to this question is somewhat counterintuitive. Battery pack gas-gauge ICs, such as the one used in the Impulse 6000D/7000DP, use a complex algorithm to estimate battery-charge state, taking into account time, temperature, and current flow. The self-discharge estimation (i.e., how much charge the battery loses over time during periods of non-use, sometimes called "shelf-life") is particularly sensitive to battery chemistry, and the shelf-life of today's NiMH cells is significantly longer than the algorithm built into the gas-gauge ICs can accommodate.

When an Impulse 6000D/7000DP is left idle for a few weeks and then powered-on, the battery charge level might be reported as 55 % when the true charge level might be 80 %. If the battery is then completely charged, which requires a 20 % increase in battery charge level, the charge level is only reported as 75 % (55 % plus 20 %).

To correct the reported charge level, use the "Train Battery" feature. To access this feature, press the [SETUP] key, then the [F1] softkey(labeled "Battery"), then press the [F3] softkey (labeled "Train Battery"), then follow the instructions presented on the screen. This procedure can take overnight to complete.

To keep the reported battery charge level as accurate as possible during extended periods of non-use, the Impulse 6000D/7000DP should be left connected to mains power via the battery charger with the unit powered off in an ambient temperature of 15Â° C to 26Â° C (60Â° F to 78Â° F). This will continuously trickle-charge the battery (the charge-status LED on the rear panel will be green) to keep both the actual and estimated battery charge level at 100 %.

Can I always count on getting nine hours of continuous battery operation on a fully-charged battery?

Age of battery pack. The battery pack will lose some charge capacity over time.
Use of the backlight display function. This option discharges the battery pack faster.
3. Operating the unit at the upper end of the specified operating temperature range, causing the internal fan to power on more often. This may especially be observed with multiple, rapid, high-energy defibrillator pulse discharges into the unit.

Can I operate or charge my Impulse 6000D/7000DP from a 12 V vehicle battery using an AC inverter to power the charger that came with my Impulse 6000D/7000DP unit?

No. For safe and reliable operation, the battery charger MUST have a good earth ground when connected to the Impulse 6000D/7000DP, and vehicle electrical systems inherently lack an earth ground. For battery charging only (with the Impulse 6000D/7000DP turned off, and no other connections to the Impulse 6000D/7000DP unit other than at the charger input jack), using a DC-to-AC inverter to power the battery charger may yield consistent battery charging, depending on the quality of the inverter used. As of this writing, Fluke Biomedical cannot recommend the use of a DC-to-AC inverter for battery-charging-only use with the Impulse 6000D/7000DP.

Can I replace the battery myself?

No. Replacement of the battery pack in the Impulse 6000D/7000DP requires disassembly of the unit. Impulse 6000D/7000DP owners who send their units to a Fluke Biomedical Authorized Service Center for periodic calibration may want to consider requesting replacement of the battery pack as preventative maintenance, which can be performed for a nominal charge.

Can I use a different battery charger than the one supplied with the unit?

No. For safe and reliable operation, the battery charger supplied with the Impulse 6000D/7000DP MUST be used when operating from mains power, or when operating and charging the battery at the same time.

Does the condition of the battery affect the calibration/specifications of the unit?

No. The Impulse 6000D/7000DP was designed and tested to meet all its performance specifications at any battery-charge level when operating from mains power or when operating from mains power while charging the battery.

Does the Impulse 7010 work with other defibrillator analyzers other than Impulse 7000DP?

The Impulse 7010 only works with Fluke Biomedical's newest defibrillator/external pacer analyzer, the Impulse 7000DP. It will not function with legacy Fluke Biomedical analyzers such as Impulse 4000, QED6, QA40/45, or with competitor products.

How can I properly test internal paddles used with defibrillators in surgery? Should I use conductive gel?

Testing defibrillator energy delivery using internal paddle electrodes, which typically have a curved shape unlike external paddles whose electrodes are flat, is best done using the special internal discharge paddle contacts accessory.

Part Number: 3065438

Description: Internal discharge paddle contacts (set of 2)

Do not use conductive gel when testing internal discharge defibs; the same applies to external discharge adhesive electrodes. The conductive electrolytic gel is only used on patients to improve the contact to the external paddles. The analyzer has very low-resistance contacts that do not require gel.

Clinically, the non-sterile conductive gel is never used inside the patient's thoracic cavity during open heart procedures with the internal discharge paddles. The internal discharge paddle adapters for the Impulse 7000 can be eTO2 gas sterilized and used on sterilized internal discharge paddles, but non-sterile adapters may be used on non-sterilized internal discharge paddles as a pre-test prior to the sterilization process of the paddles.

IMPORTANT These adapters can not be steam sterilized, as it creates too much heat for the plastic parts.

How do I charge the battery?

Plug the battery charger accessory included with your analyzer into the charger input on the rear panel and plug the mains cord into the charger unit and into mains power. The charge-status LED, visible from the rear panel, will glow red to indicate the battery is charging. The LED will turn green when charging is complete. A full recharge takes approximately four hours or less.

I own another Fluke product that came with a 12 V automotive ("cigarette lighter") adapter that fits the DC input jack on my Impulse 6000D/7000DP. Can I use this adapter to operate or charge the Impulse 6000D/7000DP from a 12 V vehicle battery?

No. For safe and reliable operation, the battery charger MUST have a good earth ground when connected to the Impulse 6000D/7000DP, and vehicle electrical systems inherently lack an earth ground. For battery charging only (with the Impulse 6000D/7000DP turned off, and no other connections to the Impulse 6000D/7000DP unit other than at the charger input jack), attempting to charge from a 12 V vehicle gives inconsistent results and therefore cannot be recommended.

Is it OK to leave my Impulse 6000D/7000DP unit connected to the battery charger when not in use?

Yes. Actually, to keep the reported battery charge level as accurate as possible during extended periods of non-use, it is recommend that the Impulse 6000D/7000DP be left connected to mains power via the battery charger with the unit powered off, in an ambient temperature of 15Â° C to 26Â° C (60Â° F to 78Â° F). This will continuously trickle-charge the battery (the charge-status LED on the rear panel will be green) to keep both the actual and estimated battery charge level at 100 %.

If the Impulse 6000D/7000DP cannot be kept connected to the battery charger during periods of non-use, the battery should be charged at least once a month. A unit with a discharged battery that is stored for an extended period of time will result in the battery becoming over-discharged, which is likely to result in permanent damage to the battery.

On the "Set Up: Battery" screen, the battery charge level remains at "Power = 50 %" even after charging the battery for a few hours. What's wrong?

On the Impulse 6000D/7000DP, the internal battery pack contains a gas-gauge IC that monitors the battery-charge level. This gas-gauge IC reports the charge level as one of sixteen levels, from 0 % to 100 %. The Impulse 6000D/7000DP reports the battery-charge level in 5 % steps, from 0 % to 100 %. Therefore, five of the 5 % steps aren't used (15 %, 35 %, 50 %, 70 %, and 90 %). The "Power = 50%" message is an indication that the microprocessor was unable to communicate with the battery pack. If this message persists, the battery pack is probably defective.

Should I drain the battery completely before charging my Impulse 6000D/7000DP unit?

This is not necessary. The battery does not exhibit a "memory effect". After multiple partial charge-discharge cycles, or if the unit is unused for an extended period of time without the charger active, the battery level indication may become inaccurate (i.e., out-of-sync with the actual battery charge level). Completely discharging the unit before charging it will resynchronize the battery charge level indication.

The charge-status LED blinks red continuously. What does this mean?

A blinking red charge-status LED indicates a pending charge and should normally last a few seconds before turning solid red. If the blinking continues, the battery-charging circuit has determined that conditions are not correct to initiate the battery-charging cycle. The battery will not be charged if the battery temperature is too cold or too hot. The battery should be charged in an ambient temperature of 10Â° C to 40Â° C (50Â° F to 104Â° F)

Also, the battery will not be charged if the battery voltage is too low, which can happen if the Impulse 6000/7000DP has been stored for an extended period of time with a fully-discharged battery. In the "Charge Pending" mode, the battery-charging circuit charges the battery at a low rate, which will eventually bring the battery voltage high enough for the normal charge cycle to begin.

The charge-status LED on the rear panel does not glow red when I plug in the charger. What's wrong?

If the Impulse 6000D/7000DP is turned on, make sure the "Charge Battery" setting is set to "Yes" on the "Set Up: Battery" screen (refer to the operating manual for details). If the Impulse 6000D/7000DP unit is turned off, the LED should glow red when the external charger is connected correctly and mains power is present.

What does the Ansur plug-in do?

When combined with the high-end functionality improvements of the Ansur test automation system, your Fluke Biomedical analyzer provides a solution-based approach to complete analysis of the medical device under test. Fluke Biomedical test equipment with Ansur automation solutions create standard work using test templates/sequences based on customer's written test procedures, manage test procedures by allowing both manual and visual automated test sequences, and integrates all test results into a single test report, which can be printed or archived.

What is Impulse 7010, Defibrillator Selectable Load Accessory used for?

Impulse 7010, Defibrillator Selectable Load Accessory, in conjunction with Impulse 7000, Defibrillator/External Pacer Analyzer, is specifically designed by Fluke Biomedical to allow defibrillator manufactures and end users to comply with portion of IEC 60601-2-4 and AAMI DF80 standards.

Impedance in humans has been shown to vary anywhere from 25 to 180 ohms with the average impedance of an adult around 70 to 80 ohms according to an AAMI study. A well designed defibrillation waveform must measure patient impedance and adjust the waveform shape and duration accordingly to optimize waveform performance across the range of anticipated impedance values.

The "Section 6.8.3" of the IEC 60601-2-4 standard and AAMI DF80 standard require defibrillators to be tested on different resistant loads of 25, 50, 75, 100, 125, 150, and 175 ohms to ensure proper energy is delivered to patients with different impedances. Impulse 7010 is also the only testing tool to test defibrillators beyond 175 ohms. A 200 ohms option gives manufactures the capability to test defibrillators under extreme impedance conditions. In addition, interface with Fluke Biomedical Ansur, PC-based automation software, allows for standard, streamlined and time-saved operation and total digital data management.

Use of Impulse 7010 is easy. Simply connect the Impulse 7010 output connectors to the input connectors of Impulse 7000 as shown in the figure below. The various connection combinations available through the Impulse 7010's rotary switch provide eight different loads for a defibrillator discharge.

What is the purpose of the fan located on the back of the Impulse 6000D/7000DP?

The fan on the back of Impulse 6000D/7000DP is controlled by a thermostat IC. The thermostat utilizes an on/off control (i.e., not linear or continuous control). The thermostat IC is located next to the defibrillator load resistor.

There are two temperature thresholds. The lower threshold is set at about 40Â° C (104Â° F) and the upper threshold is set at about 50Â° C (122Â° F). When the temperature exceeds the low threshold, the fan turns on. When the temperature exceeds the upper threshold, a warning message is displayed and the unit will not make any further measurements until the temperature has dropped below the upper threshold.

Why do I get accurate reading when testing pacer function on the ZOLL M series defibrillator/External Pacer, but inaccurate reading when testing on the ZOLL PD1400 by selecting ZOLL MEDICAL Algorithm from Impulse 7000?

ZOLL M Series and PD14000 use different algorithms to output pacing function. The default ZOLL MEDICAL pacer selection in Impulse 7000 uses ZOLL M Series algorithm to detect pacer output from ZOLL pacers. We recommend that customer choose ZOLL MEDICAL brand under Impulse 7000 PACER testing function when testing ZOLL M Series, but choose DEFAULT ALGORITHM when testing ZOLL PD14000 to get accurate readings.

Will the battery need to be replaced at some point?

Yes. The manufacturer of the NiMH battery cells used in the Impulse 6000D/7000DP specifies a typical loss of 10 % of battery charge after 500 charge-discharge cycles, which is approximately two years of daily use. Battery charge capacity also degrades with time, so even a seldom-used unit will lose some battery charge capacity. The Impulse 6000D/7000DP battery power feature was designed conservatively to maximize the probability of the battery pack performing satisfactorily well beyond two years.

Which defibrillation waveforms can Impulse 6000D/7000DP test?

Monophasic waveforms used in the legacy defibrillators, biphasic waveforms in most of today's technology, as well as pulsed biphasic waveform, an emerging new technology.

What is the main difference between monophasic and biphasic waveforms?

The basic difference is the direction of current flow between the defibrillation pads. With a monophasic waveform, the current flows in only one direction. With a biphasic waveform, the current flows in one direction, then reverses and flows in the opposite direction. Lower energy is used in biphasic waveforms.

Are all biphasic waveforms alike?

No. Different waveforms perform differently depending on their shape, duration, voltage, current, and response to impedance. Different biphasic waveforms are designed to work at different energies. Impulse 6000D/7000DP measures the monophasic waveforms used in the legacy defibrillators, biphasic waveforms used in current technology, as well as pulsed-biphasic waveforms, an emerging technology.

Does Impulse 7000DP test both transcutaneous and transvenous pacers?

Impulse 7000DP tests the full function of transcutaneous pacers, but not transvenous pacers. For transvenous pacer testing, try the SigmaPace 1000 or DALE400 analyzers.

How does the Ansur plug-in work?

Why do I get accurate reading when testing pacer function on the ZOLL M series defibrillator/External Pacer, but inaccurate reading when testing on the ZOLL PD1400 by selecting ZOLL MEDICAL Algorithm from Impulse 7000?

Vertical Tabs

Impulse 7000DP

Impulse 7000DP-01

Impulse 7000DP-02

Impulse 7000DP-03

Impulse 7000DP-04

Impulse 7000DP-05

IMPULSE 7000DP-06

TA-IMP7KDP

TA-IMP7KDP-01

TA-IMP7KDP-02

TA-IMP7KDP-03

TA-IMP7KDP-04

TA-IMP7KDP-05

TA-IMP7KDP-06

TA-IMP7K/7010 US

TA-IMP7K/7010 SHK

TA-IMP7K/7010 UK

TA-IMP7K/7010 JPN

TA-IMP7K/7010 AUS

TA-IMP7K/7010 BRAZ

Impulse 7000DP Defibrillator Analyzer and Pacemaker Tester

Request a quote or demo

Product Details

The Impulse 7000DP model is a combination Defibrillator/Transcutaneous Pacemaker Analyzer

Accessories

Batteries, Chargers, Power Supplies

AC Power Cord (USA)

Ansur Impulse 6000D/7000DP Plug-In license

Adapters

GE Marquette Defib/Pacer adapter

Internal defib discharge paddle contacts (set of two)

Medtronic ERS/Physio-Control Defib/Pacer adapter

Medtronic ERS/Physio-Control Pacer adapter

MedtronicERS/Physio-Control Defib adapter

Philips/Agilent HEARTSTART FR2/MRX Defib/Pacer adapter

Zoll Medical NTP/PD1400 pacer adapter

Defibrillator Analyzers

Ansur 3.1.4 Executive Software

Impulse 7000 Firmware v2.12

Ansur Impulse 6000D/7000DP Plug-In v1.2.5

Manual » Getting Started Guide

Manual

Frequently Asked Questions

Manual » User's Manual

Application Note

Datasheet

Certification

Webinars

Videos

Frequently Asked Questions

After charging my unit completely (until the Charge Status LED turns green), the battery charge level still indicates less than 100 %. What's wrong? How do I get the charge level to read 100 %?

Can I always count on getting nine hours of continuous battery operation on a fully-charged battery?

Can I operate or charge my Impulse 6000D/7000DP from a 12 V vehicle battery using an AC inverter to power the charger that came with my Impulse 6000D/7000DP unit?

Can I replace the battery myself?

Can I use a different battery charger than the one supplied with the unit?

Does the condition of the battery affect the calibration/specifications of the unit?

Does the Impulse 7010 work with other defibrillator analyzers other than Impulse 7000DP?

How can I properly test internal paddles used with defibrillators in surgery? Should I use conductive gel?

How do I charge the battery?

I own another Fluke product that came with a 12 V automotive ("cigarette lighter") adapter that fits the DC input jack on my Impulse 6000D/7000DP. Can I use this adapter to operate or charge the Impulse 6000D/7000DP from a 12 V vehicle battery?

Is it OK to leave my Impulse 6000D/7000DP unit connected to the battery charger when not in use?

On the "Set Up: Battery" screen, the battery charge level remains at "Power = 50 %" even after charging the battery for a few hours. What's wrong?

Should I drain the battery completely before charging my Impulse 6000D/7000DP unit?

The charge-status LED blinks red continuously. What does this mean?

The charge-status LED on the rear panel does not glow red when I plug in the charger. What's wrong?

What does the Ansur plug-in do?

What is Impulse 7010, Defibrillator Selectable Load Accessory used for?

What is the purpose of the fan located on the back of the Impulse 6000D/7000DP?

Why do I get accurate reading when testing pacer function on the ZOLL M series defibrillator/External Pacer, but inaccurate reading when testing on the ZOLL PD1400 by selecting ZOLL MEDICAL Algorithm from Impulse 7000?

Will the battery need to be replaced at some point?

Which defibrillation waveforms can Impulse 6000D/7000DP test?

What is the main difference between monophasic and biphasic waveforms?

Are all biphasic waveforms alike?

Does Impulse 7000DP test both transcutaneous and transvenous pacers?

How does the Ansur plug-in work?

Why do I get accurate reading when testing pacer function on the ZOLL M series defibrillator/External Pacer, but inaccurate reading when testing on the ZOLL PD1400 by selecting ZOLL MEDICAL Algorithm from Impulse 7000?

Contact Us

Online Chat

Call
